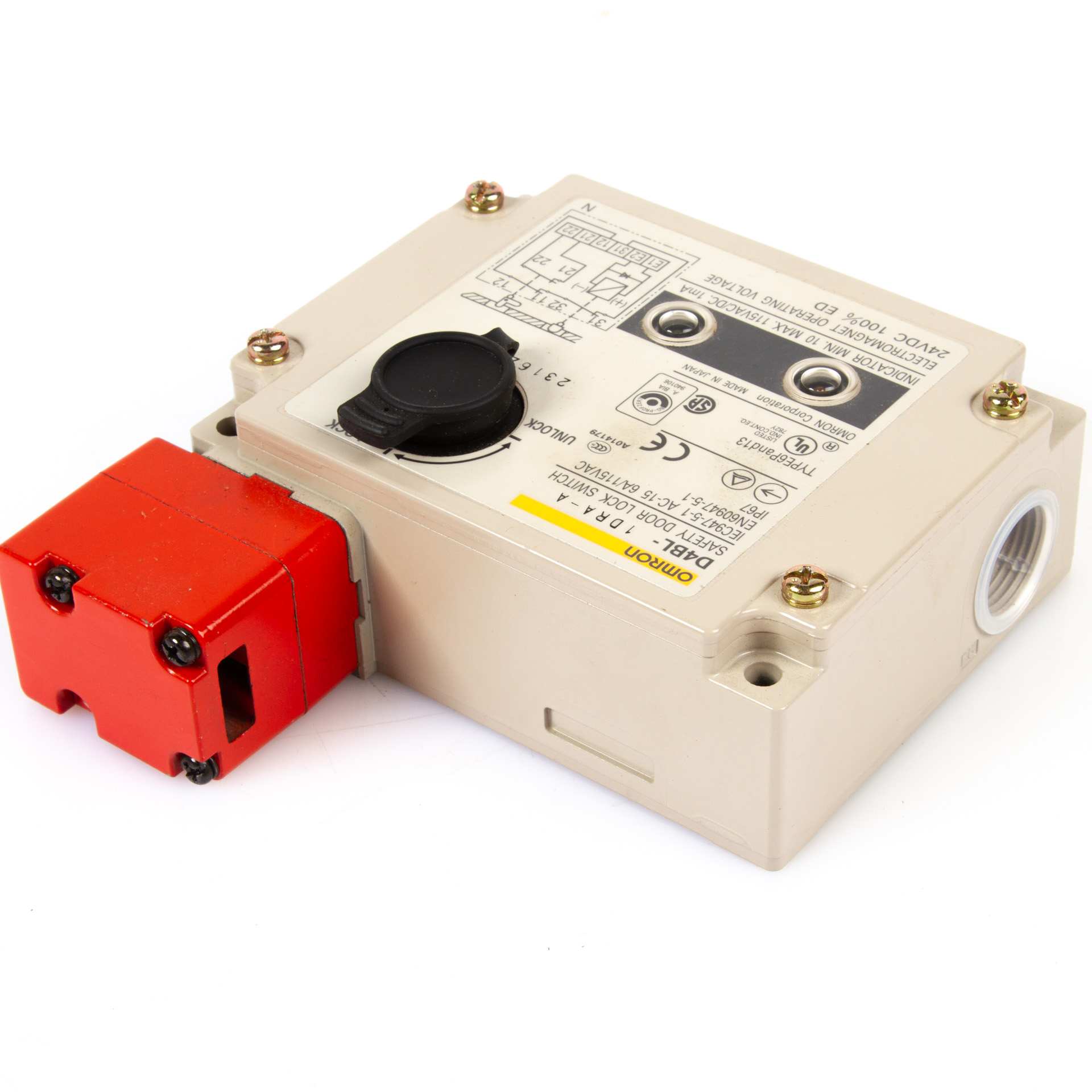

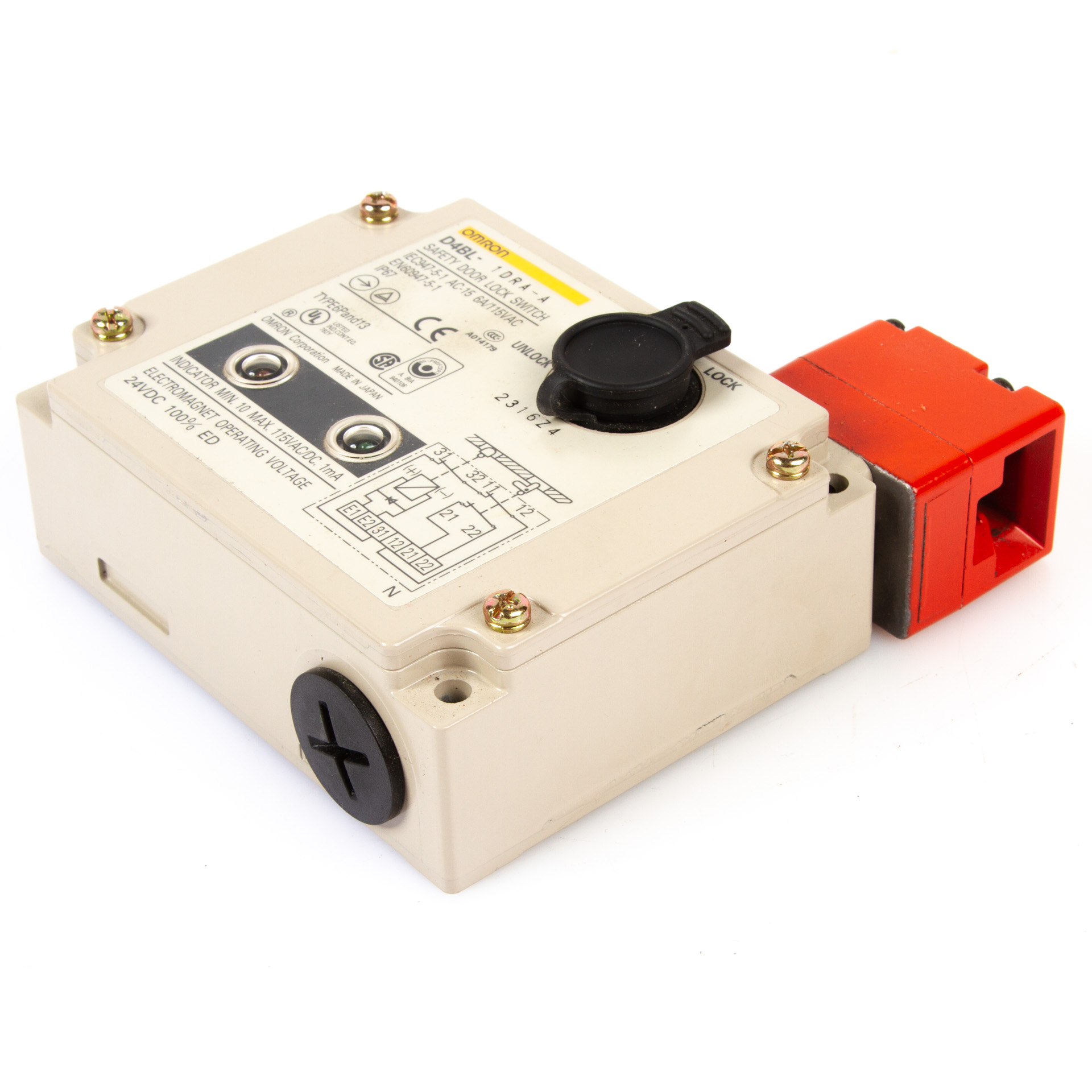

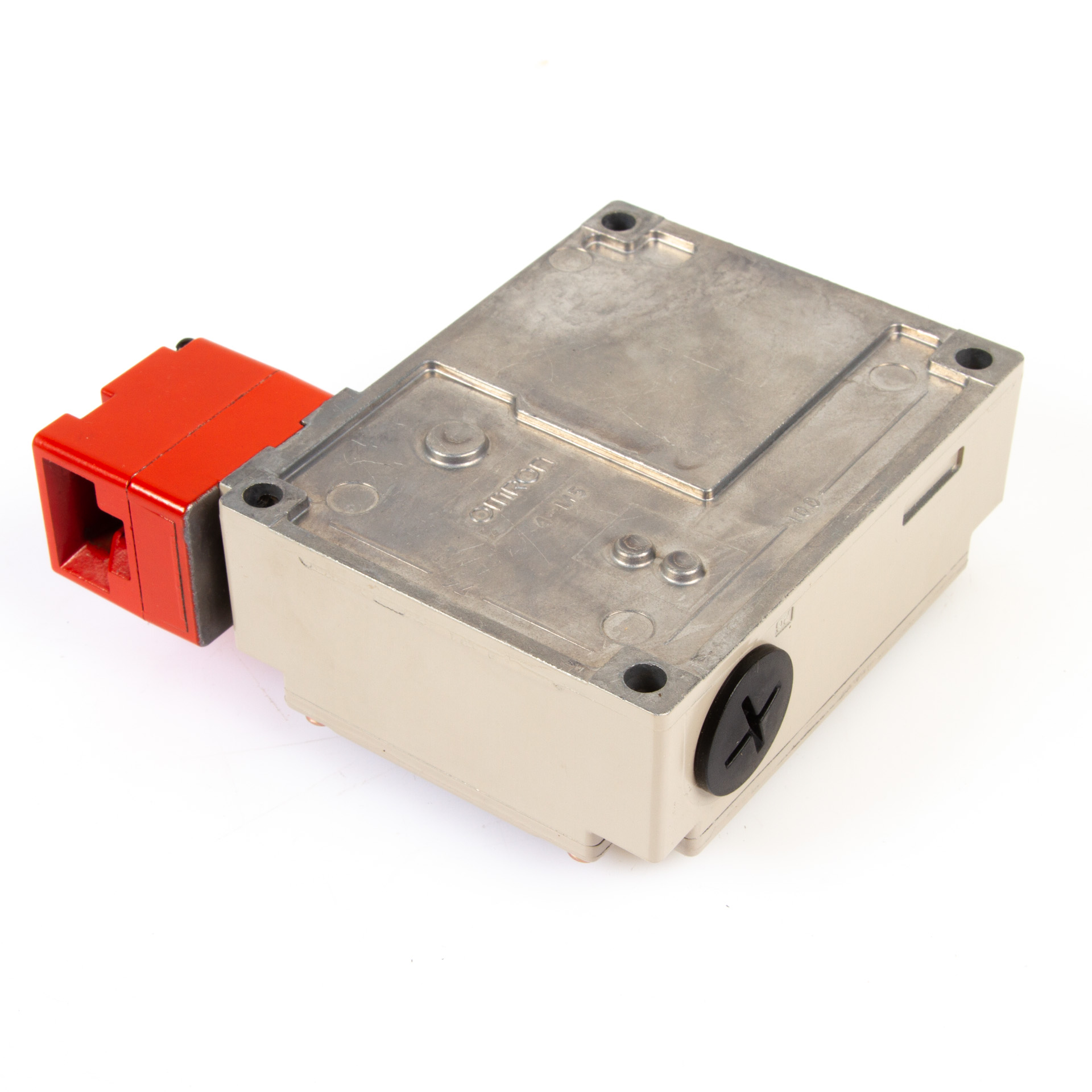

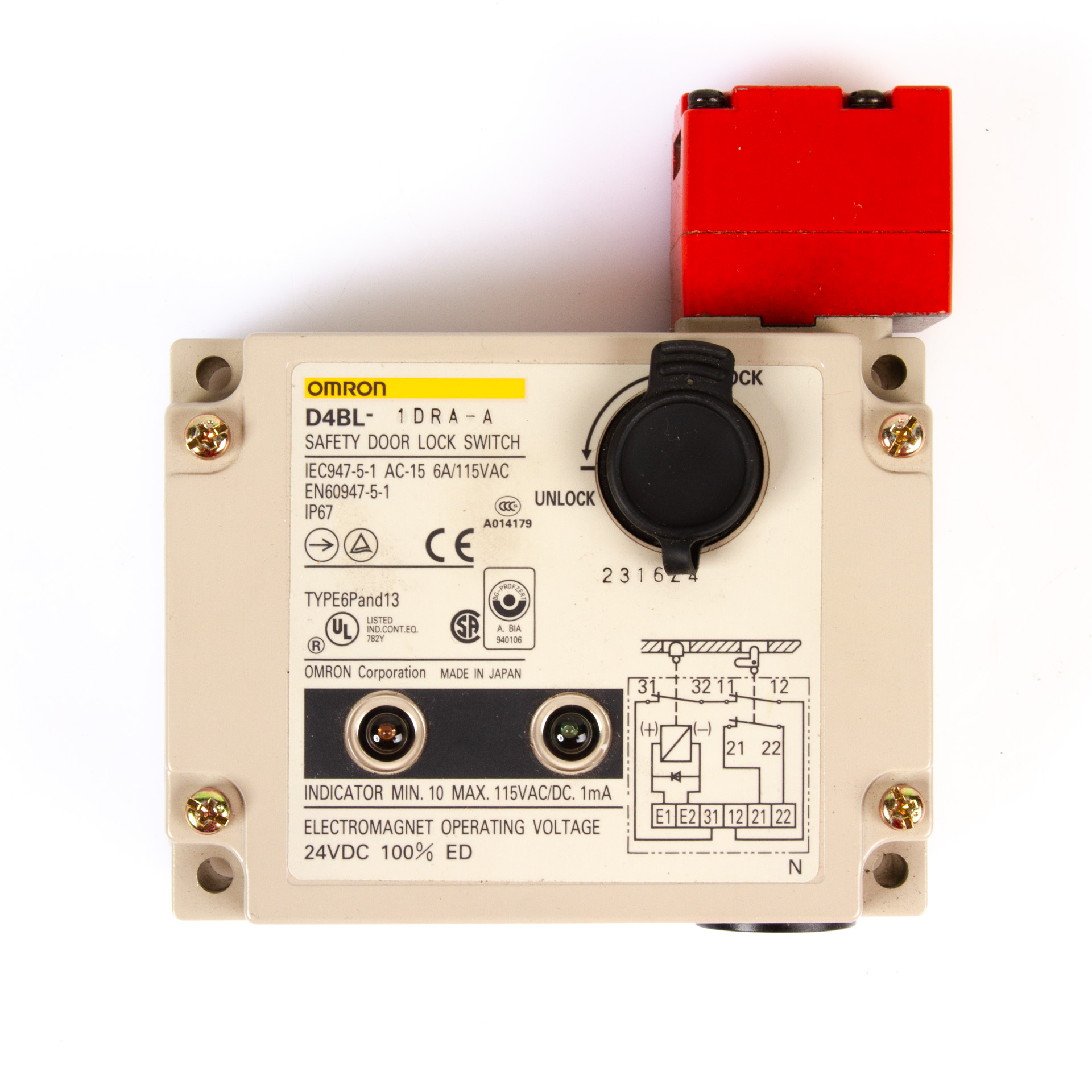

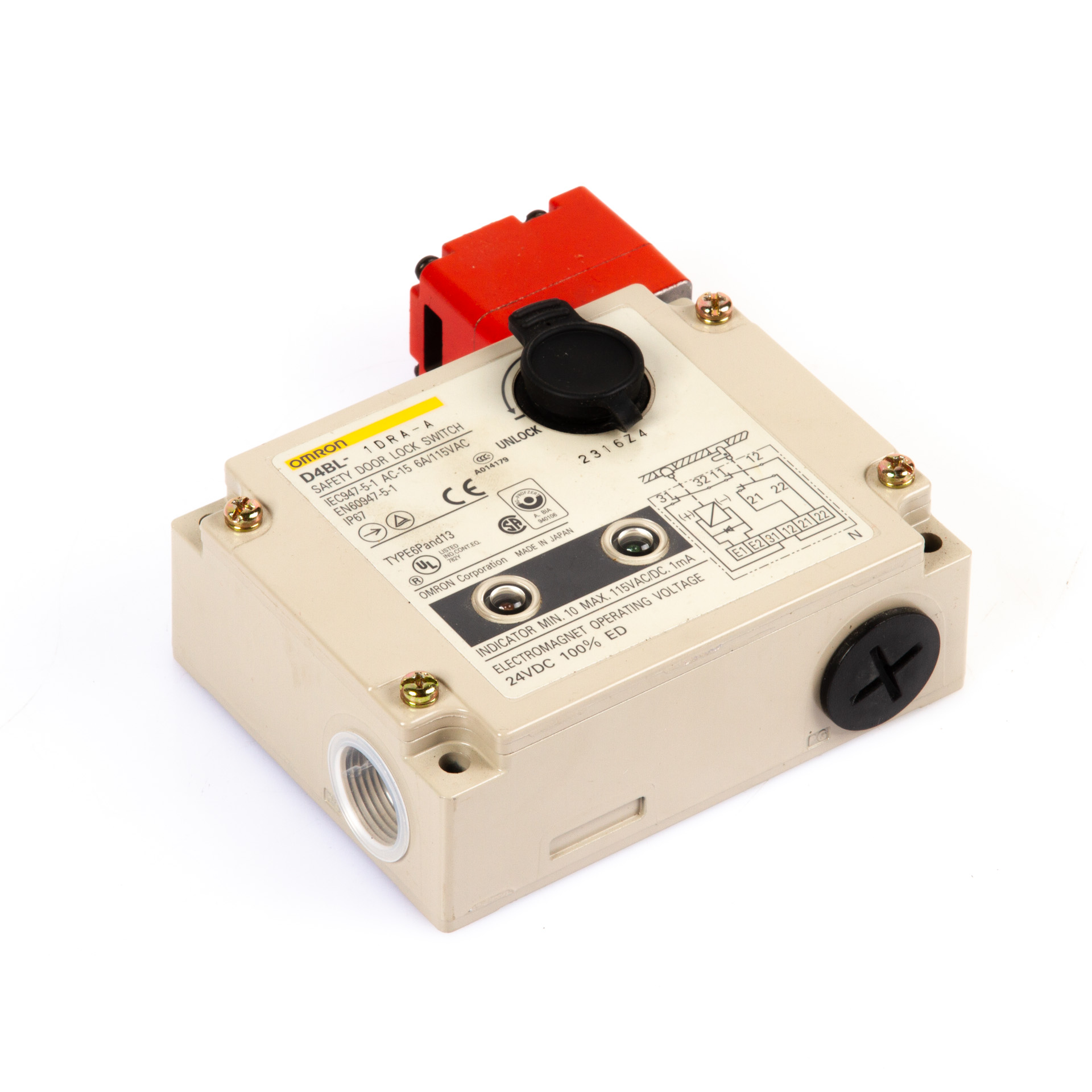

D4BL-1DRA-A Omron Türverriegelung mit Indicator

Model Number Structure

Model Number Legend

Switch

1. Conduit Size (2-conduit)

1: PG13.5

2: G1/2

4: M20

2. Built-in Switch (with Safety Switch and Lock Monitor Switch

Contacts)

C: 1NC/1NO (slow-action) + 1NC (slow-action)

D: 2NC (slow-action) + 1NC (slow-action)

3. Head Mounting Direction

R: Four mounting directions possible (right-side mounting at

shipping)

4. Door Lock and Release (Auxiliary Release Key is Incorporated

by All Models)

A: Mechanical lock/24 VDC solenoid release

G: 24 VDC Solenoid lock/Mechanical release

5. Indicator

Blank: Without indicator

A: 10 to 115 VAC or VDC driving (with orange and green LED

indicator unit)
